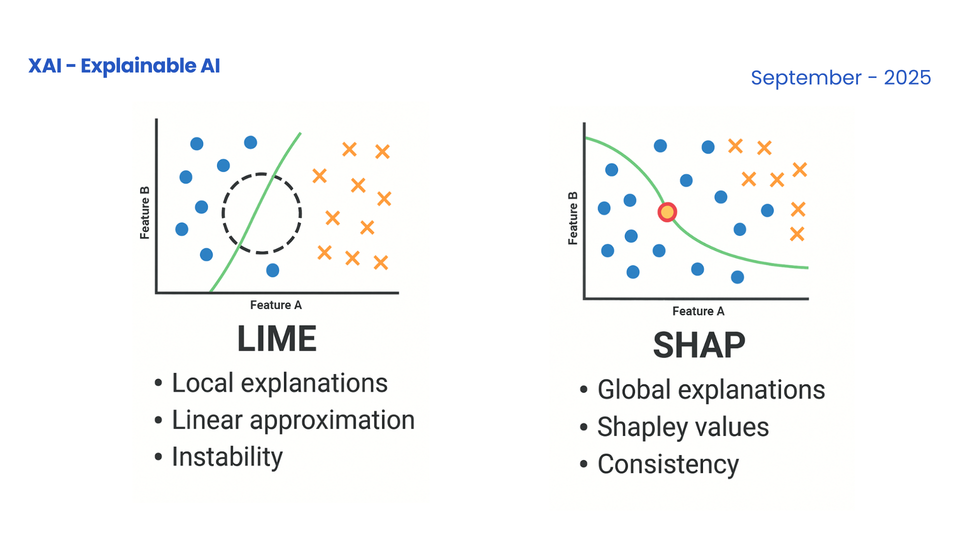

[XAI] SHAP vs. LIME in XAI: A Deep, Practical Comparison for Real-World ML

TL;DR: LIME is fast, local, and great for quick “what’s going on here?” checks. SHAP is principled, consistent, and better for trustworthy summaries and governance. Use TreeSHAP for tree models, Deep/Gradient SHAP for deep nets, and keep LIME around for rapid, single-point debugging. Always validate explanations (faithfulness, stability) and choose a sensible background/perturbation strategy.

1) What They Are (and What They Mean)

LIME (Local Interpretable Model-agnostic Explanations)

• Idea: Approximate your black-box model ( f ) locally around a target point ( x_0 ) with a simple, interpretable surrogate ( g ) (e.g., sparse linear model or a small tree).
• Objective:
  $$
  \min_{g \in G} \ \sum_{\tilde{x}} K(\tilde{x}, x_0),\big(f(\tilde{x}) - g(\tilde{x})\big)^2 ;+; \Omega(g)
  $$
  where $ K(\tilde{x}, x_0) $ is a locality kernel (nearby points get higher weight), and $ \Omega(g) $ enforces interpretability (e.g., sparsity).
• Meaning: The coefficients of $ g $ are local sensitivities near $ x_0 $.

SHAP (SHapley Additive exPlanations)

• Idea: Attribute a prediction to features using Shapley values from cooperative game theory—i.e., the fair average marginal contribution of each feature across all coalitions.
• Definition: For feature ( i ),
  $$
  \phi_i ;=; \sum_{S \subseteq N \setminus {i}} \frac{|S|!,(|N|-|S|-1)!}{|N|!},\Big(v(S \cup {i}) - v(S)\Big),
  $$
  typically with $ v(S) = \mathbb{E}[,f(X)\mid X_S,] $ relative to a background distribution.
• Meaning: $\phi_i$ is the fair share of feature $ i $ in moving from a baseline prediction to the current prediction, satisfying desirable axioms (efficiency, symmetry, additivity, consistency).

2) Core Assumptions and Interpretability Semantics

Key takeaway:

• LIME explains local linear sensitivity.
• SHAP explains fair contribution relative to a baseline under principled axioms.

3) Complexity, Speed, and Engineering Practicality

4) Stability and Robustness

5) Explanation Quality and Human Factors

• Readability: Both produce per-feature positive/negative contributions. SHAP has a richer, standardized plotting ecosystem (force/waterfall/beeswarm/dependence/interaction).
• Global consistency: SHAP’s axioms make dataset-level summaries (e.g., mean $|\phi|$ rankings, beeswarm plots) more trustworthy than aggregating many unrelated local LIME fits.
• Actionability:
  • LIME: Good for local, actionable “what-if” hints at a single point.
  • SHAP: Good for global governance and auditable insights (and interaction analysis).

6) Data Types and Use-Case Fit

• Tree models (XGBoost/LightGBM/Random Forest): Prefer TreeSHAP (fast, exact or near-exact, stable). Keep LIME for quick spot checks.
• Deep learning (image/text/time series):
  • LIME has quick-to-use superpixel/word masks (fast demos, but variance can be high).
  • Deep/Gradient SHAP or Integrated Gradients with SHAP-style baselines give more principled attributions.
• Time series classification/forecasting:
  • LIME: Local window explanations for one case, useful in ops/debug.
  • SHAP: Strong on global feature/time-step importance, interactions, and stable reports.

7) Hyperparameters and Common Pitfalls

LIME

• Sampling (num_samples): too small → high variance; too large → slow.
• Kernel width (kernel_width): too large → not “local”; too small → noisy overfit.
• Sparsity (num_features or regularization): balance readability vs. fidelity.
• Pitfall: Off-manifold perturbations and feature correlation can produce unrealistic samples → misleading explanations.

SHAP

• Background set (background):
  • Options: full training set (costly), prototypes (k-means/medoids), stratified/conditional backgrounds (by segment/time regime).
  • Too small or unrepresentative → biased attributions; too large → expensive.
• Algorithm: Trees → TreeSHAP; deep nets → Deep/Gradient SHAP; arbitrary black-box → KernelSHAP (costly but general).
• Pitfall: With highly correlated features, Shapley values split credit among them. Consider conditional SHAP or group features.

8) Is the Explanation Trustworthy? (Validation Protocol)

• Faithfulness: Sort features by importance; progressively ablate/perturb them and track performance decay. Faster decay ⇒ more faithful.
• Stability: Same point, multiple runs; or nearby points — measure variance/smoothness.
• Infidelity / Sensitivity: Perturbation-based metrics to test consistency with model behavior.
• Human evaluation: Domain-expert agreement, decision quality lift (A/B).
• Counterfactuals: Do suggested changes actually move predictions as implied?

9) Visualization That Communicates

• LIME: Single-point bar charts; simple local decision boundary views (2D).
• SHAP:
  • Single case: force plot / waterfall.
  • Global: beeswarm for distribution + mean ($\phi$) bars for ranking.
  • Dependence: scatter of feature value vs. SHAP value (color by a second feature to reveal interactions).
  • Interactions: SHAP interaction values (heatmaps, pairwise plots).
• Time series: Plot time-step SHAP curves (per channel/window), annotate events/peaks.

10) Risk, Governance, and Robustness

• Drift monitoring: Periodically recompute SHAP/LIME on fresh samples; track distribution shifts in explanations.
• Adversarial robustness: LIME is more perturbation-sensitive; SHAP needs careful background hygiene to avoid leakage.
• Privacy: Background sampling should respect minimization and de-identification.

11) When to Use Which?

Prefer SHAP when…

• You need consistent, auditable, global and local views.
• You use tree models (TreeSHAP is a no-brainer).
• You need interaction analysis and repeatable metrics.
• You must present trustworthy summaries to stakeholders/regulators.

Prefer LIME when…

• You need fast, single-instance diagnostics (ops/debugging).
• Model/tooling constraints block efficient SHAP variants.
• You want a simple surrogate narrative for a local case.

Use both when…

• LIME for quick triage/“what-if” at the edge;
• SHAP for stable organization-wide insights and reporting.

12) Minimal Implementation Checklist (You Can Copy-Paste Into Your Workflow)

1. Algorithm choice
   • Trees → TreeSHAP.
   • Deep nets → Deep/Gradient SHAP (or Integrated Gradients with SHAP-style baselines).
   • Black box → KernelSHAP (+ prototype background).
   • Keep LIME for field debugging (fix random_state).
2. Background / Sampling
   • SHAP background: stratify by business regime (e.g., time-of-day, segment), sample 20–100 representative points per stratum; group correlated features when meaningful.
   • LIME: num_samples (500\sim5000); pick kernel_width based on a sensible distance metric; fix seeds.
3. Visualization & Reporting
   • Per case: SHAP waterfall + LIME bar (side-by-side).
   • Global: SHAP beeswarm + mean (|\phi|) rankings; dependence plots with color-coded second feature for interactions.
   • Time series: time-step SHAP curves with event markers.
4. Trust checks
   • Faithfulness curves and stability (variance across runs).
   • Monthly (or per release) re-run explanations to monitor drift.
5. Actionability
   • Focus on high ($\phi$) yet controllable features; validate with counterfactuals or constrained what-ifs before policy/process changes.

Appendix: Math Notes (MathJax-ready)

• LIME objective
  $$
  \min_{g \in G} \ \sum_{\tilde{x}} K(\tilde{x}, x_0),\big(f(\tilde{x}) - g(\tilde{x})\big)^2 ;+; \Omega(g)
  $$
• SHAP (Shapley value)
  $$
  \phi_i ;=; \sum_{S \subseteq N \setminus {i}} \frac{|S|!,(|N|-|S|-1)!}{|N|!},\Big(v(S \cup {i}) - v(S)\Big), \quad
  v(S) = \mathbb{E}\big[f(X)\mid X_S\big]
  $$
• Additivity (explanation model)
  $$
  f(x) \approx \phi_0 + \sum_{i=1}^{n} \phi_i z_i,
  $$
  where $ \phi_0 $ is the baseline prediction (expectation under the background), $ z_i $ indicates presence of feature $ i $.

One-Line Summary

LIME = local, fast, approximate.
SHAP = axiomatic, consistent, aggregable.
In production, default to SHAP (Tree/Deep variants), keep LIME for rapid local diagnostics, and always validate with faithfulness + stability before you trust and act.
