[Review] A multibranch CNN‑BiLSTM model for human activity recognition using wearable sensor data

Source: Challa, S. K., Kumar, A., & Semwal, V. B. (2022). A multibranch CNN-BiLSTM model for human activity recognition using wearable sensor data. The Visual Computer, 38, 4095–4109. https://doi.org/10.1007/s00371-021-02283-3

TL;DR — The paper proposes a tri-branch CNN→BiLSTM architecture that learns local features at multiple temporal scales (kernel sizes 3/7/11) and then models long-range dependencies with BiLSTM. On three benchmarks (UCI-HAR, WISDM, PAMAP2), it reaches 96.37%, 96.05%, and 94.29% accuracy respectively, outperforming several CNN/LSTM/TCN baselines under subject-wise splits.

1) Problem & Motivation

Sensor-based HAR underpins applications in healthcare, smart homes, and HCI. Traditional ML pipelines rely on hand-engineered features and struggle with noisy, imbalanced time series; recent deep models improve accuracy but still face feature extraction challenges. The authors argue that combining multi-scale convolutions (for local patterns) with BiLSTM (for bidirectional temporal context) can address these issues with minimal manual preprocessing.

2) Proposed Method: Multibranch CNN-BiLSTM

High-level design. The network has three parallel Conv1D branches that share the same input but use different kernel sizes: 3, 7, and 11, capturing short-, mid-, and longer-range local dependencies. Each branch stacks two Conv1D layers (ReLU), dropout, and max-pooling; branch outputs are concatenated and passed to BiLSTM layers (64 then 32 units), followed by a dense layer, batch normalization, and a softmax classifier. Training uses Adam (lr=0.001) with categorical cross-entropy.

Why BiLSTM? When the full sequence/window is available, BiLSTM leverages both past and future context, often yielding more accurate sequence classification than unidirectional LSTM/GRU.

3) Data & Preprocessing

The study evaluates on UCI-HAR, WISDM, and PAMAP2, using subject-wise splits to avoid leakage across train/test (i.e., unseen users at test time). All datasets are segmented with a sliding window length of 128 samples and 50% overlap. Channels per dataset: UCI-HAR: 9, WISDM: 3, PAMAP2: 52. Within each 128-sample window, the model further applies a TimeDistributed setup by dividing into four subsequences of length 32.

• UCI-HAR (50 Hz, 30 subjects, 6 activities): 7,352 train / 2,947 test samples.
• WISDM (20 Hz, 36 subjects, 6 activities): first 28 users for training (13,042 samples), remaining 8 for testing (4,114). Input normalized to mean 0 and unit variance.
• PAMAP2 (100 Hz, 9 subjects, 12 chosen activities): 7 subjects train, subjects 5 & 6 test; 52 features from 3 IMUs, standardized.

4) Training Setup

• Epochs: 100; Batch size: 400.
• Optimizer: Adam (lr=0.001).
• Hardware: NVIDIA GeForce GTX 1660 Ti.
  All ablations and baselines are trained with the same hyper-parameters where applicable.

5) Results

Main performance (Accuracy / F1)

• UCI-HAR: 96.37% acc, 96.31% F1 — higher than Res-LSTM, CNN-LSTM, Bidirectional LSTM, dilated/ED-TCN baselines reported by the authors.
• WISDM: 96.05% acc, 96.04% F1 — surpasses CNN, LSTM-CNN, and RNN-LSTM references in the paper.
• PAMAP2: 94.29% acc, 94.27% F1 — better than CNN, BiLSTM, ARC-NET, LSTM-F, and COND-CNN comparisons reported.

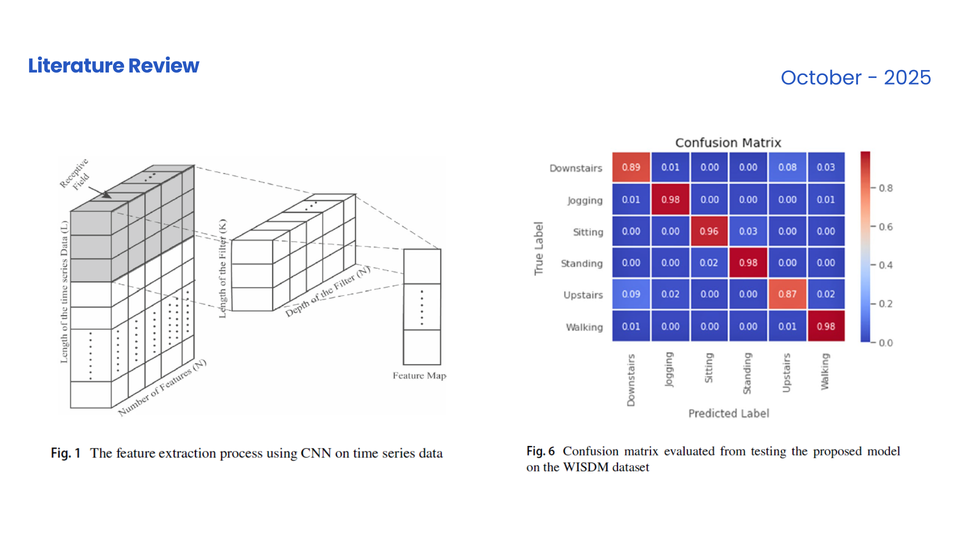

Confusion-matrix insights

Across datasets the model attains >95% accuracy on most classes; on PAMAP2, rope jumping and ascending stairs are comparatively harder.

6) Ablations & Architectural Trade-offs

1. Filter size ablation (single-branch CNN-BiLSTM):
   Filter size 3 helps rope jumping; 7 helps Nordic walking; 11 improves ironing and stairs. No single size dominates across all classes—motivating multi-scale fusion.
2. Branch count:

• Single-branch < Dual-branch < Tri-branch (proposed) in accuracy.
• Quad-branch adds parameters/training time and slightly improves on some sets, but the authors select tri-branch as the best accuracy-vs-cost compromise. Parameter counts and training times increase with branches.

3. RNN variant swap:
   CNN-BiLSTM > CNN-LSTM ≈ CNN-GRU, consistent with the value of bidirectional context when entire windows are available.

7) Strengths

• Multi-scale local patterning via 3/7/11 kernels and global temporal context via BiLSTM—well-matched to inertial time series.
• Subject-wise splits enhance external validity for user-independent HAR.
• Consistent gains across three datasets with minimal hand-crafted features.

8) Limitations & Threats to Validity

• Windowed, offline setting: BiLSTM consumes full windows; on strict real-time streaming, bidirectionality may be infeasible without latency.
• Compute/params: Accuracy rises with branches, but so do parameters and training time—relevant for embedded deployment.
• Class difficulty variability: Some high-dynamic or similar motions (e.g., rope jumping vs. other locomotion) remain challenging; confusion persists on PAMAP2.

9) Practical Takeaways (for building your own HAR models)

• Use subject-wise splits to estimate user-independent performance credibly.
• Adopt multi-scale Conv1D front-ends (e.g., kernel sizes 3, 7, 11) before a temporal model to capture short/medium/long local cues.
• If latency tolerates it, BiLSTM can outperform unidirectional LSTM/GRU on fixed windows; otherwise consider causal TCN/GRU for streaming.
• Standardize sampling & windows (e.g., 128-sample windows, 50% overlap) to align heterogeneous sensors.

10) Connections to My Research (Smart-Pouch / Time-Series Logistics)

• Your air-cargo motion sensing resembles HAR in structure: multi-axis IMU streams, noisy labels, and class imbalance. The paper’s multi-scale Conv1D + BiLSTM suggests a strong baseline for detecting cargo movement states (e.g., idle, taxiing on dolly, conveyor transfer). Consider replacing BiLSTM with causal GRU/TCN for low-latency alerts in live warehouse flows, and keep the multi-scale convolutional stem intact.

11) Reproducibility Checklist

• Code/Framework: Keras + TensorFlow; Conv1D branches (kernels 3/7/11), BiLSTM(64→32), Dense(128), BatchNorm, Softmax.
• Windows: length 128, 50% overlap; within each window, 4×32 subsequences via TimeDistributed.
• Optimizer/Loss: Adam (lr 0.001), categorical cross-entropy; epochs 100, batch 400.
• Splits: subject-wise as specified per dataset.
• Hardware: GTX 1660 Ti (for reference).

12) Suggested Extensions

• Latency-aware variant: Replace BiLSTM with causal TCN to remove look-ahead; compare accuracy-latency trade-offs.
• Imbalance handling: Try focal loss or cost-sensitive sampling to improve rare activities like rope jumping.
• Domain adaptation: Evaluate leave-one-device-out or leave-one-position-out to test robustness across sensor placements.

13) Reference (APA)

Challa, S. K., Kumar, A., & Semwal, V. B. (2022). A multibranch CNN-BiLSTM model for human activity recognition using wearable sensor data. The Visual Computer, 38, 4095–4109. https://doi.org/10.1007/s00371-021-02283-3

BibTeX

@article{Challa2022Multibranch,
  title   = {A multibranch CNN-BiLSTM model for human activity recognition using wearable sensor data},
  author  = {Challa, Sravan Kumar and Kumar, Akhilesh and Semwal, Vijay Bhaskar},
  journal = {The Visual Computer},
  year    = {2022},
  volume  = {38},
  pages   = {4095--4109},
  doi     = {10.1007/s00371-021-02283-3}
}

14) Copyright & Reuse Notes

• This review is a paraphrased summary for academic commentary and does not reproduce figures or long verbatim text from the article. All key claims are attributed to the original authors (see in-text citations and reference). If you plan to include any figures, tables, or extended excerpts, obtain permission from the publisher (Springer Nature) or ensure they fall within fair-dealing/fair-use limits.

This paper introduces a tri-branch CNN-BiLSTM for sensor-based human activity recognition that combines multi-scale Conv1D feature extraction (kernels 3/7/11) with bidirectional recurrent modeling of temporal context. Using subject-wise splits and fixed windows (128 samples, 50% overlap) on UCI-HAR, WISDM, and PAMAP2, the model achieves 96.37%, 96.05%, and 94.29% accuracy respectively, improving on several CNN/LSTM/TCN baselines. Ablations show complementary strengths of different kernel sizes and a favorable accuracy-vs-complexity trade-off at three branches. The approach is practical for user-independent HAR and suggests extensions toward causal/low-latency variants for real-time deployment.
